Commercial Use & Licensing

Pro License for Commercial Rally Events

Pro Subscribers have the right to use the roadbooks you create in commercial events — events with paid entries and any commercial activity. The Premium tier is licensed for personal use only, not commercial events. Pro level is required once money is involved in the event.

Removes ‘Not for Commercial Use’

Roadbooks produced on the Premium tier carry a “Not for Commercial Use” marking in the PDF header. Pro removes it, so the PDFs and exports you hand to competitors and officials carry your event branding and nothing else.

The Premium markings that Pro removes

Roadbook Branding & Print Output

Custom Roadbook Header Image

Select a custom header image at the top of every roadbook page with your own event artwork, series or sponsor banner.

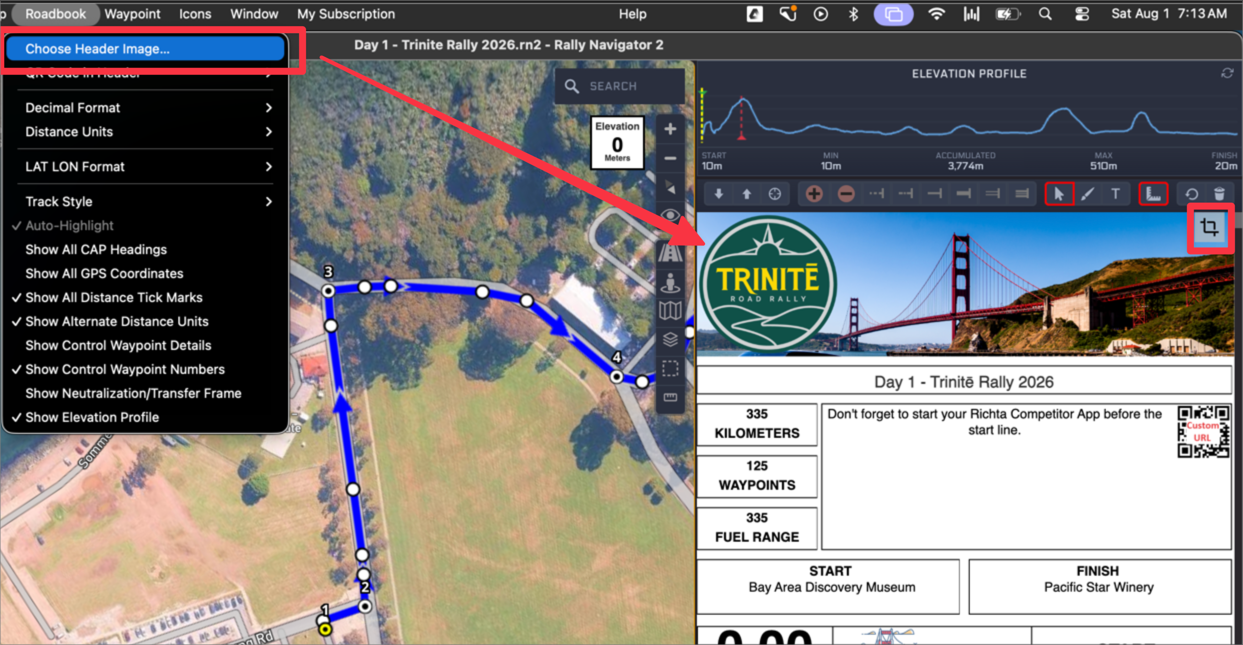

Choosing a custom header image

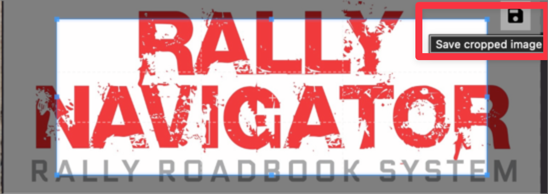

Built-in crop tool for header image

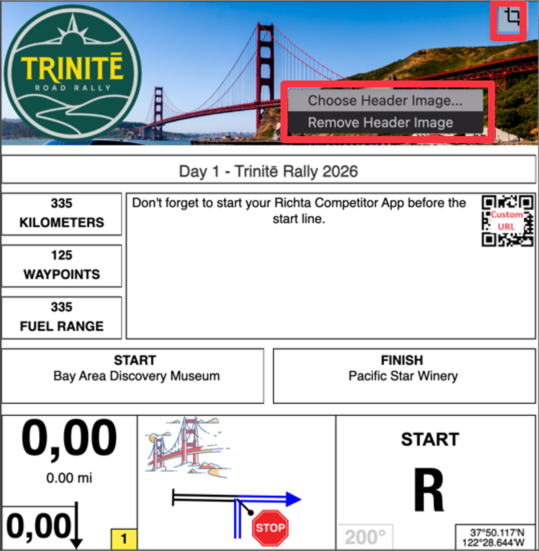

Right-click the header to change or remove the image

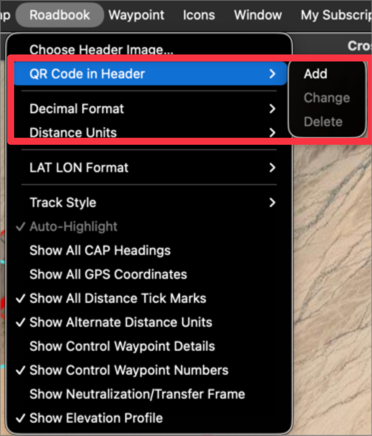

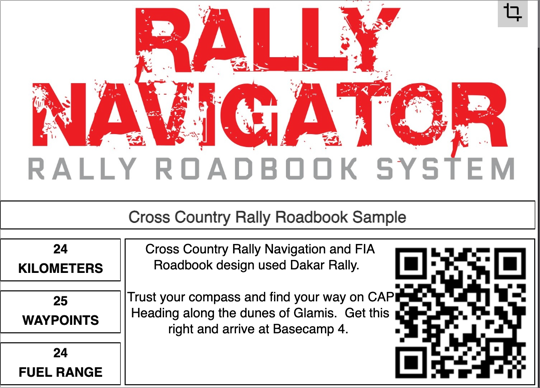

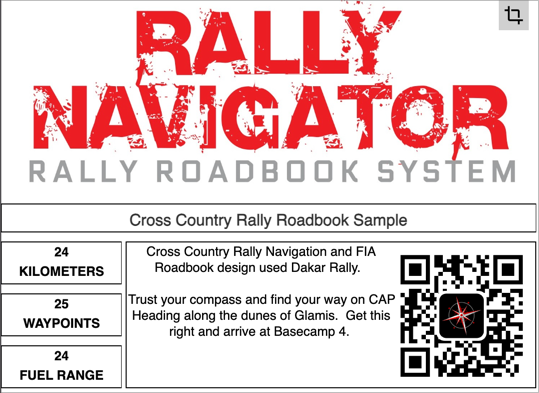

Custom QR Code in Header & Waypoints

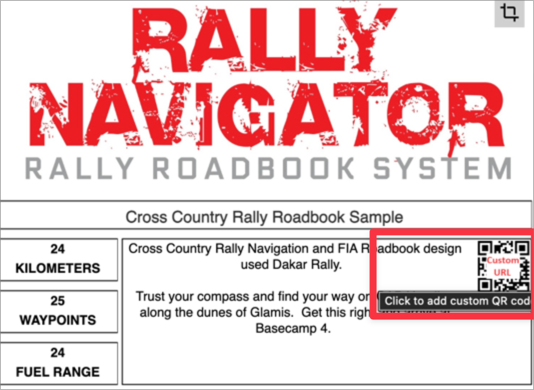

Place QR codes on the roadbook header and on individual waypoints. Competitors can scan them in the field to reach whatever URL you desire.

• Event information
• Hotel location
• Download a PDF
• Emergency contact

Import Custom Navigation Icons

Load your own navigation symbols alongside the built-in FIA and Dakar icon sets. Useful for national federations with their own symbol conventions, or for hazards and instructions the standard sets do not cover.

Add icons to the library from the Icons menu

Or add them straight from the My Icons tab

You can also copy an icon image from a web browser and paste it into a waypoint, then right-click it and choose Copy to My Icons to save it to your library.

Right-click a waypoint icon and choose Copy to My Icons

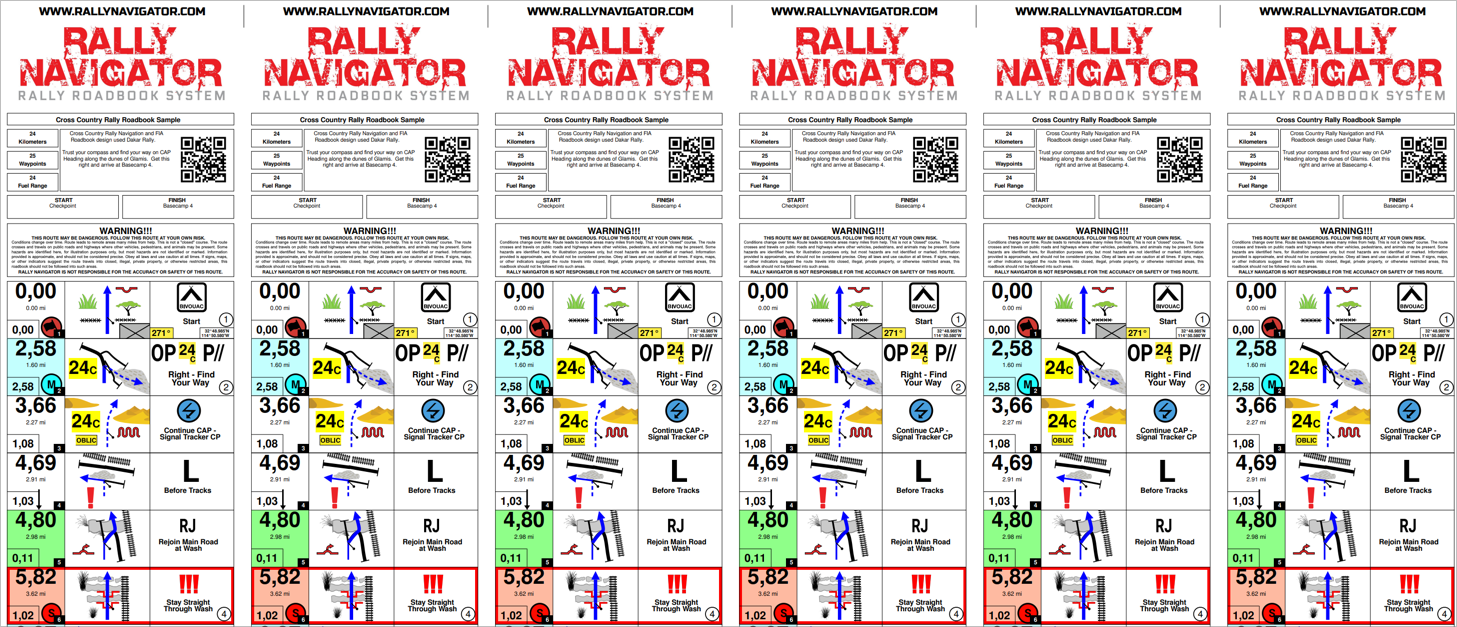

Multi-wide Moto Rolls

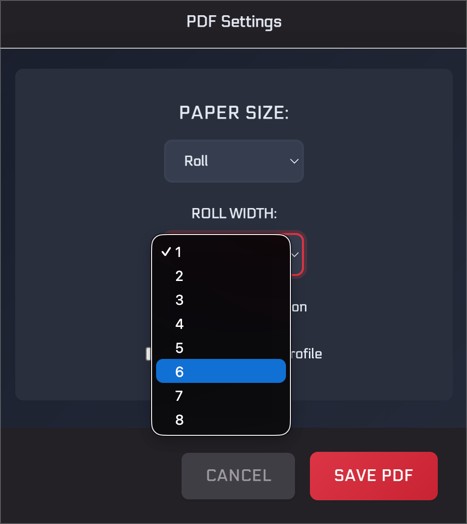

Print to PDF continuous motorcycle roadbook rolls in multiple copies per wide format sheet so the same route can be printed on a wide format printer and cut to width to produce multiple rolls from a single sheet of paper. Ask your commercial printer about the proper paper width and the max rolls available for that sheet size.

Download the sample — Moto Style Roll x 6, Cross Country Rally on 36″ paper (PDF)

Mapping & Route Data

Additional Map Sources

Unlocks additional base map and satellite imagery layers. Coverage and imagery may vary between providers, so having more to choose from may give you better options in your area.

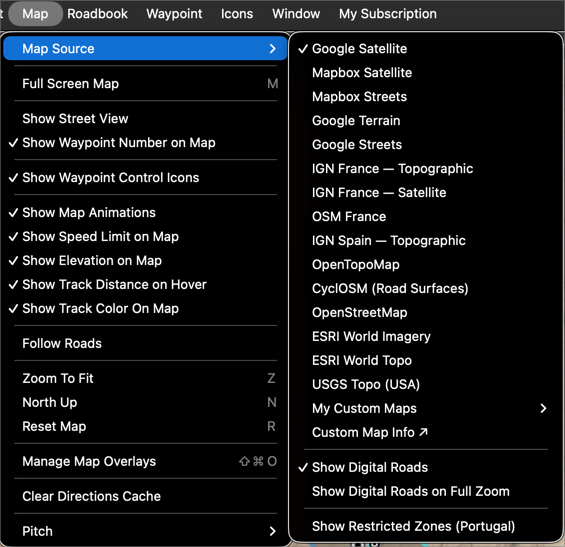

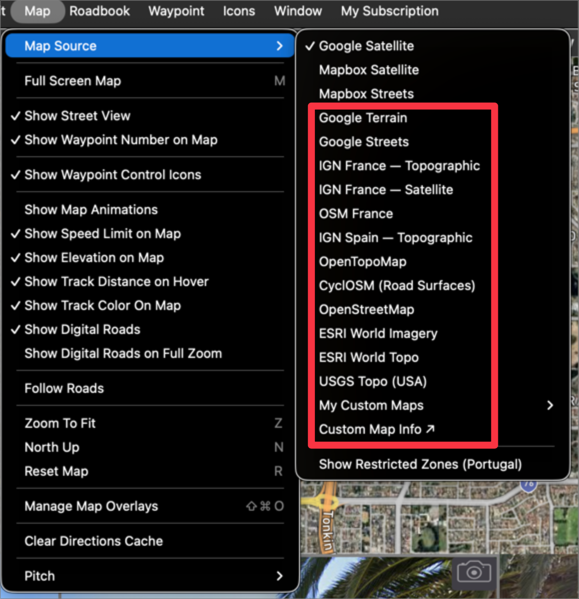

Map sources available from the Map menu

Show Speed & Elevation on Map

Display speed limit and elevation information at the selected location on the map while planning your route.

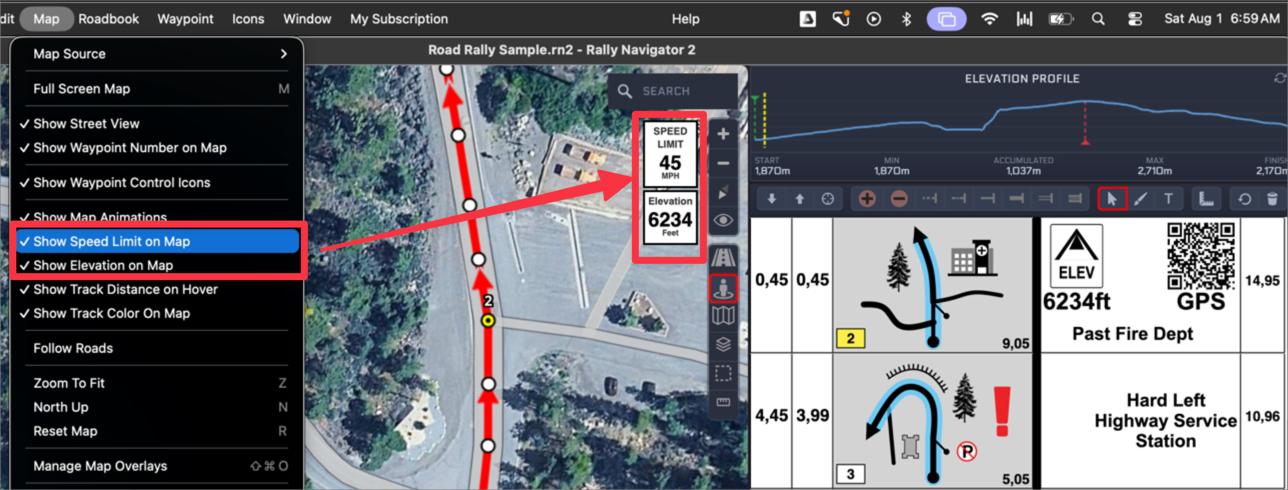

Speed limit and elevation at the selected location

Show Track Color On Map

The track on the map will change color depending on special stage, transit stage, speed zone, neutralization, and neutralization with speed limit.

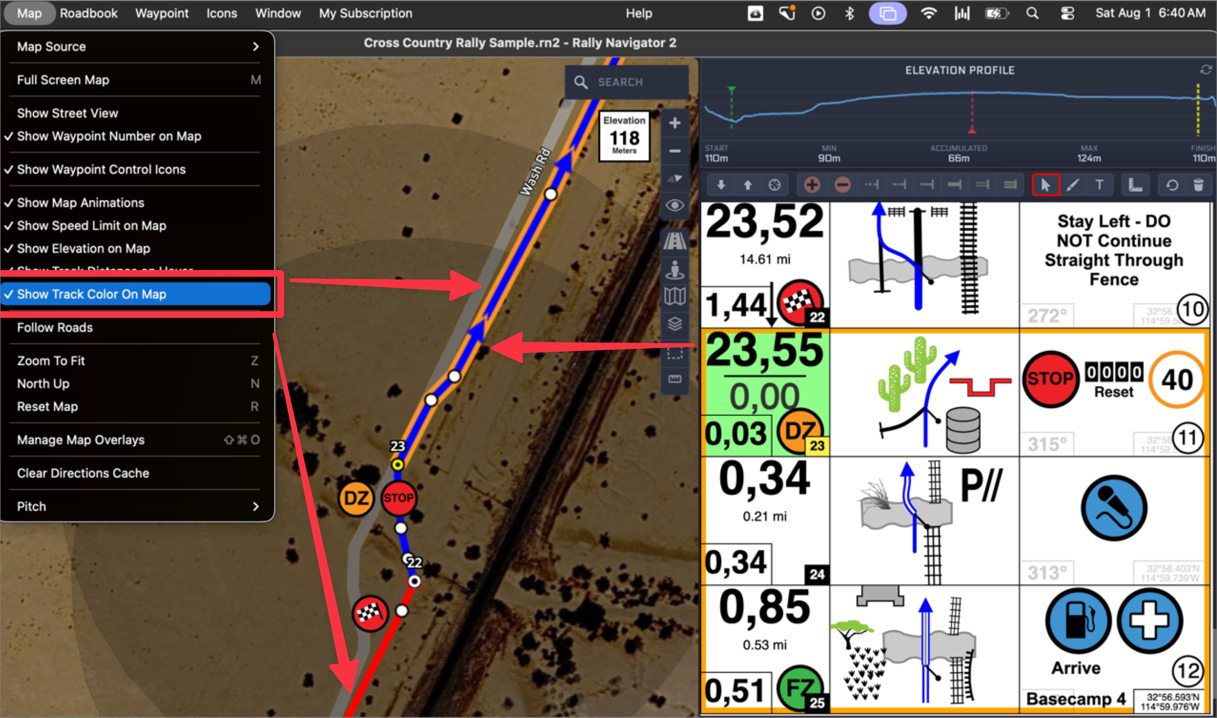

Show Track Color On Map

Elevation Profile & Data

Generate elevation profile for the route on screen and in PDF. Also includes elevation data in the OpenRallyGPX export. The elevation profile now shows blue for transit stage, red for special stage, plus start, finish and fuel icons along the route. All of it is exported to the matching PDF.

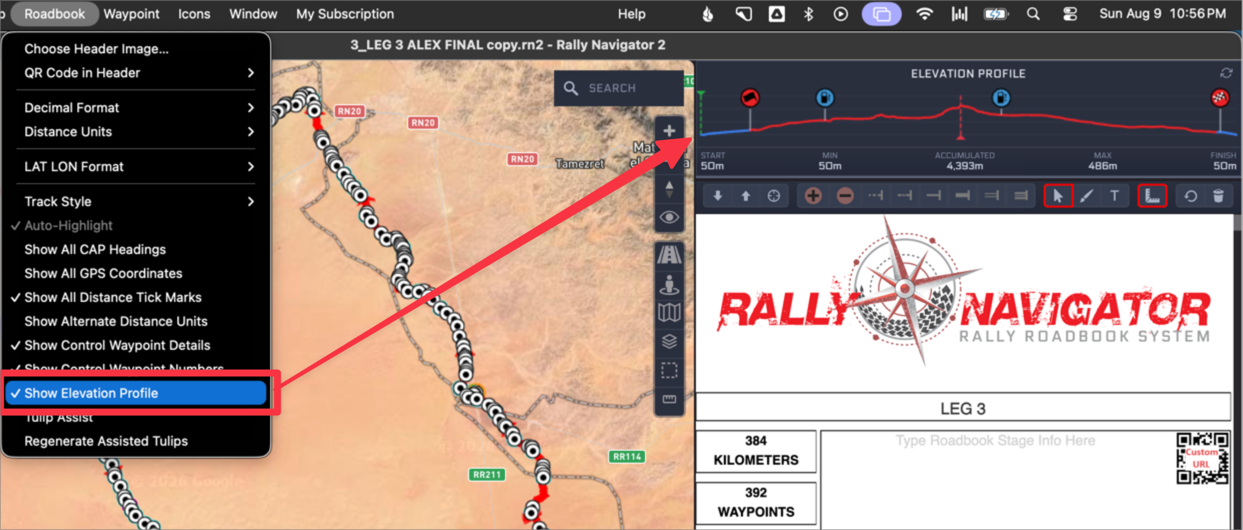

Show Elevation Profile in the app

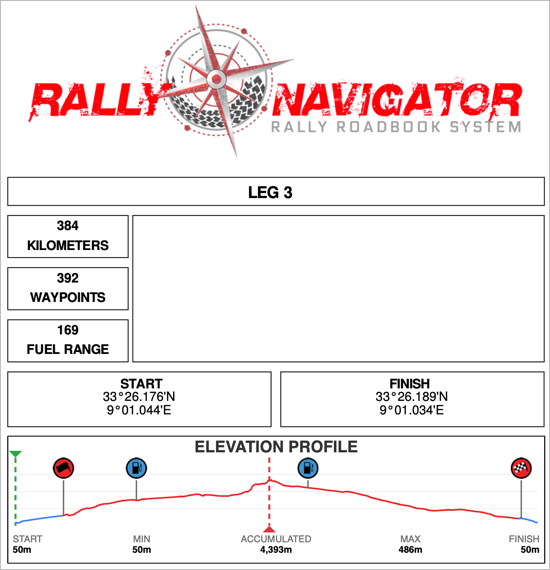

The same profile printed in the roadbook PDF

Street View Image to Roadbook

Add the current Street View image of a road section directly to the Roadbook notes box.

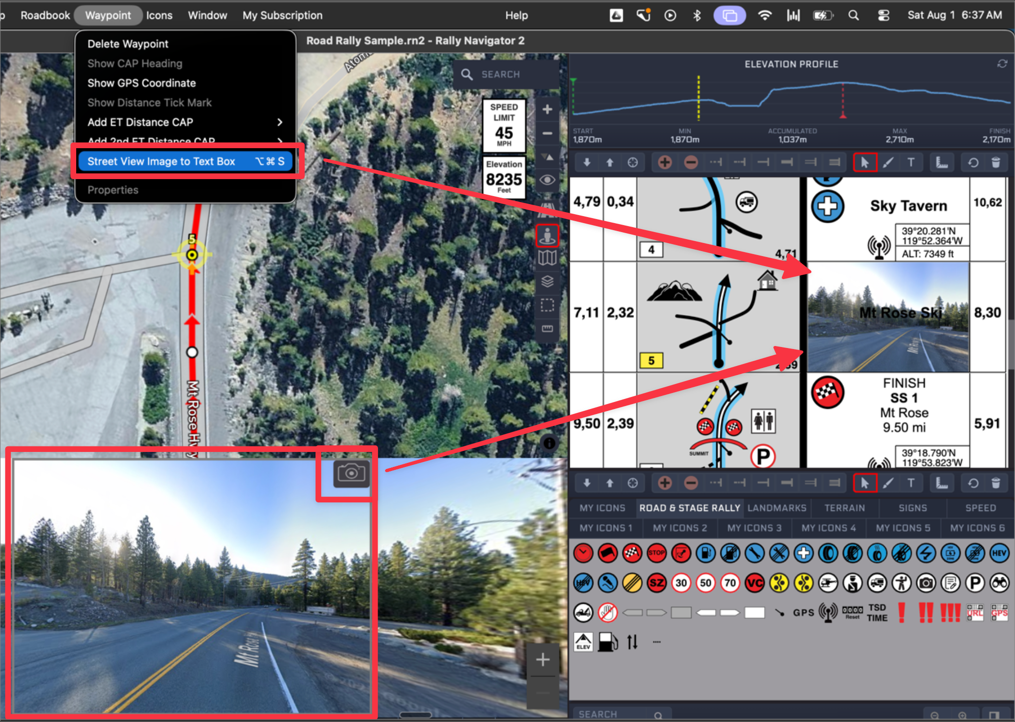

Street View Image to Text Box, from the Waypoint menu

GPS Roadbook Recorder LIVE

Record a Roadbook and save Waypoints LIVE from GPS location while you drive the route. Distances, headings and waypoints are captured in the field. You can do complete waypoint editing and details as you drive and come back with a Roadbook to refine at the desk rather than one to build from scratch.

This feature requires USB GPS input to your laptop computer. Tested for Mac and PC with the GlobalSat BU-353NC and the V-FAN UG-353. Rally Navigator connects over a standard USB serial connection, so other USB GPS receivers may also work; these two are the units we have tested. Not tested on Linux — it would be great if a Linux user could test and confirm.

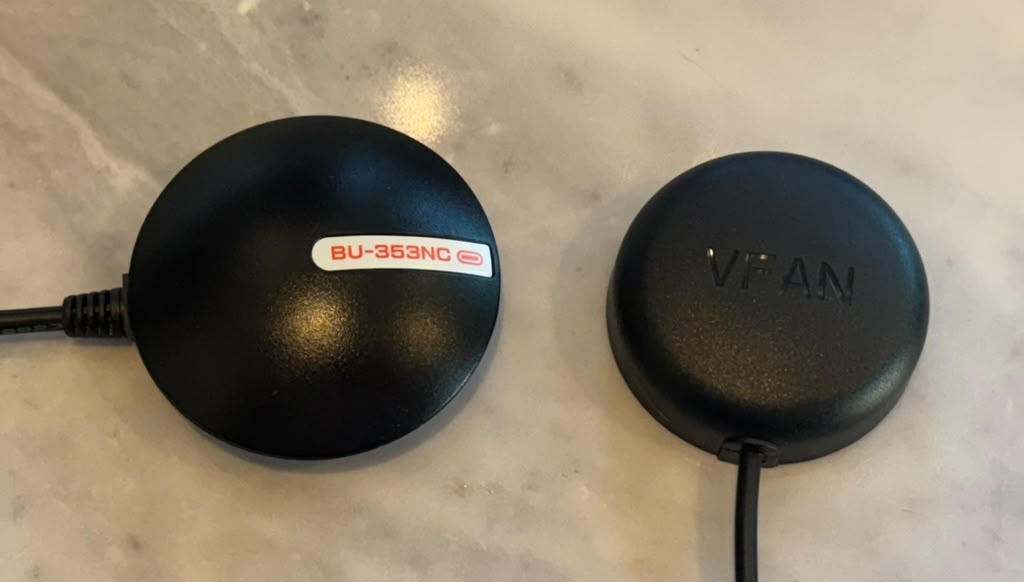

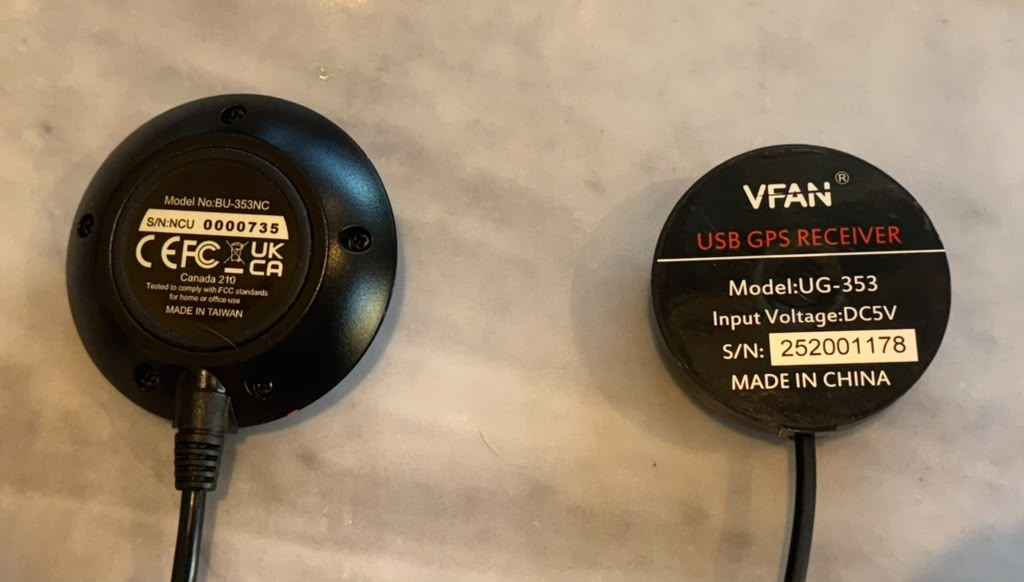

The two USB GPS receivers tested with the recorder

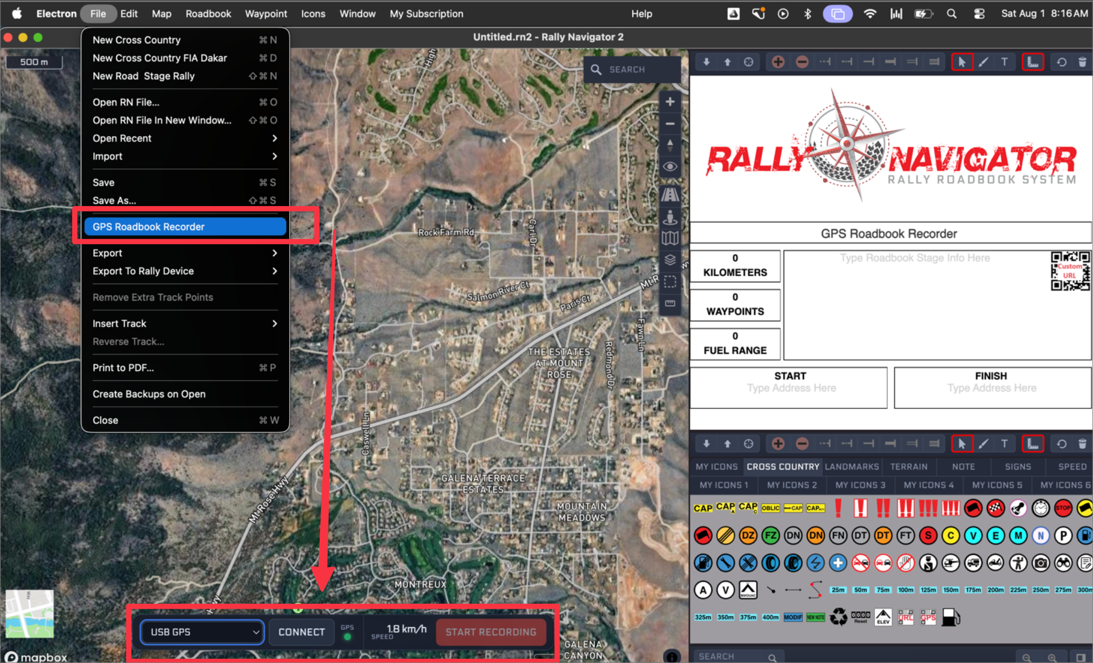

Connecting Rally Navigator to GPS devices

1. Plug in the GPS puck to your computer with clear view of the sky (dashboard works fine).
2. Wait about a minute to acquire GPS signal and click the Connect button.
3. It may take 30 seconds to connect.
4. Once the GPS puck is connected, you should see a green GPS indicator if you’re receiving good GPS signal. You should also see the blue dot on the map at your location.

GPS connected and ready to record. Green dot indicates good GPS signal.

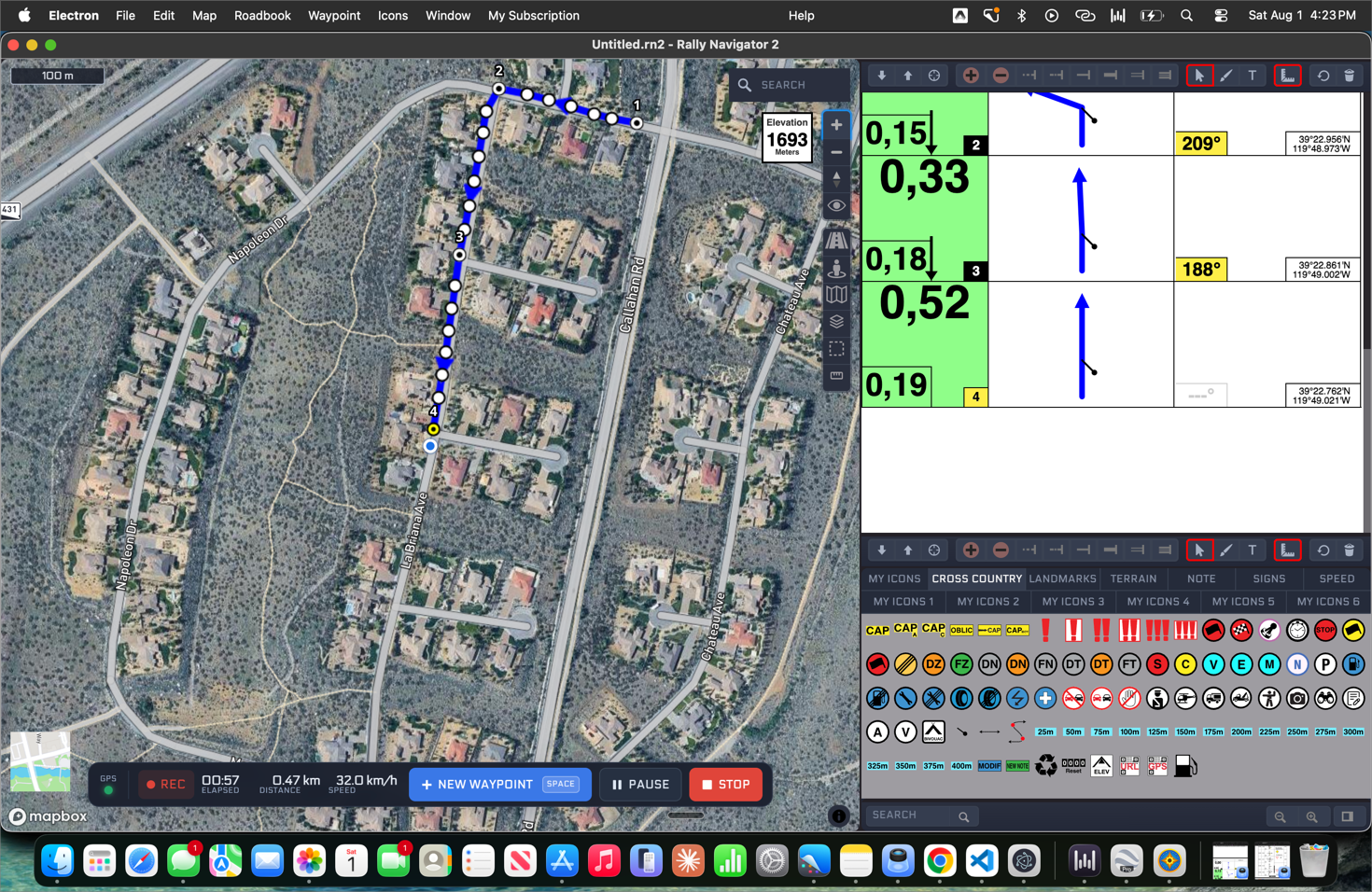

Recording a roadbook. Click the New Waypoint button or tap the space bar at each location you want a Waypoint

Tapping Start Recording creates your first waypoint. User can pause or stop the recording as needed. User can continue drawing the roadbook manually. If you already have an existing roadbook you would like to continue, you can load that roadbook file and continue recording with the GPS. User has full editing capability of any waypoint while recording a roadbook. When you are done editing a waypoint, clicking the target button on the recorder toolbar will fly the map back to your current location.

GPS Roadbook Validator

The GPS Roadbook Validator is used to review and update existing routes. Load an existing RN2 roadbook, connect the GPS antenna, and turn on the roadbook validator feature. Once you have connected, the blue dot will appear on the map at your location. The map and roadbook will automatically advance as you drive along the existing route, and you can easily edit existing waypoints along the way. If you need to add an additional waypoint at your location, tap the space bar. You can then edit the waypoint as needed. When you are done editing a waypoint, clicking the target button on the validator toolbar will fly the map back to your current location.

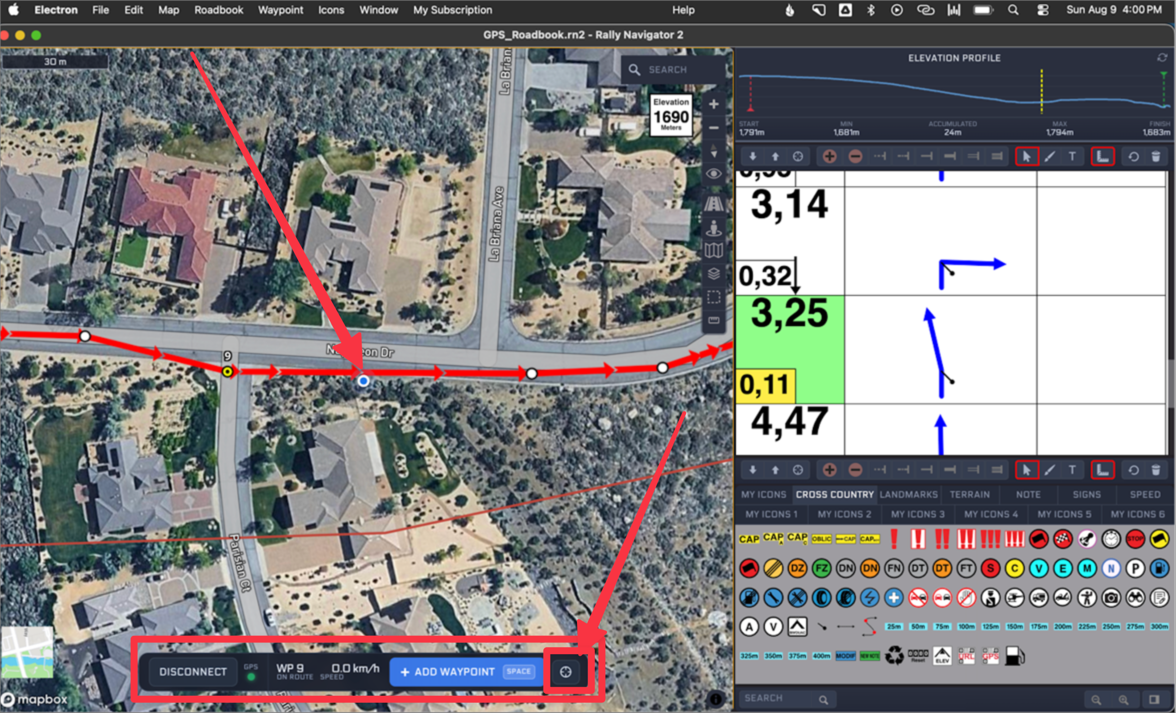

Validating an existing roadbook. Add a new waypoint by tapping Space bar or clicking the button on screen

Waypoints & Editing

Waypoint Numbers & Control Icons on Map

Show waypoint numbers and control icons on the map. Checking a roadbook page against the map becomes direct, and the structure of the event stays visible while you plan the route.

Waypoint numbers and control icons shown on the map

Drag and Drop Smart Icons

Drag and drop QR code for latitude, longitude and elevation data into any waypoint.

Drag the ELEV and GPS smart icons into a waypoint

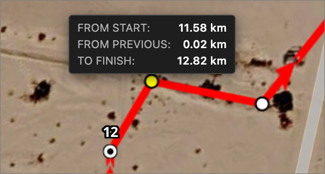

Hover Over Track Distance

Hovering over a track point will show the user:

• Distance from Start
• Distance from Previous Waypoint
• Distance to Finish

Add Track Distance/CAP

Adding Track Distance info to a Waypoint: right-click on a subsequent track point for the option to add distance and an icon, usually a Terrain icon or a "!". Select it in the menu, then drag and drop the icon into the notes box. It will automatically add itself to the @ Distance display and become a single draggable, resizable object.

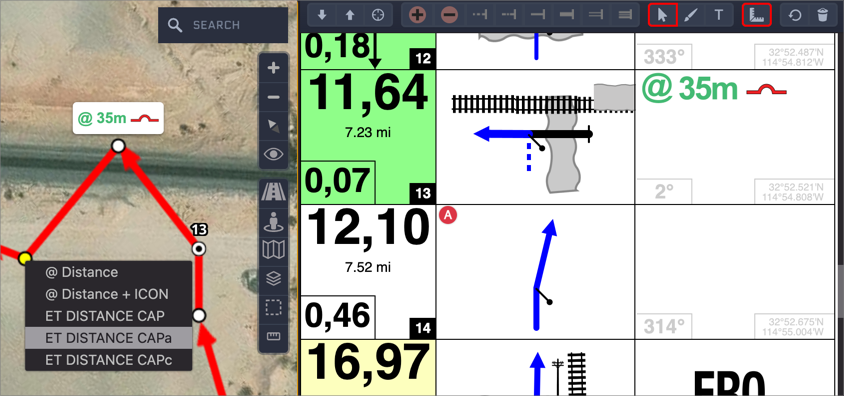

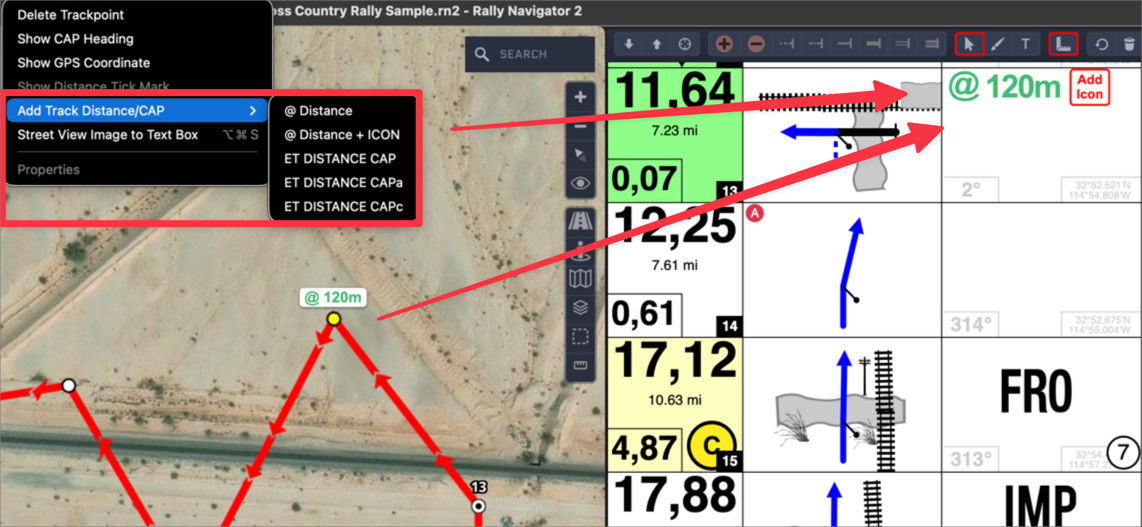

The Add Track Distance/CAP menu on a track point

You can also add ET Distance and CAP, CAPa or CAPc to the waypoint:

• CAP (compass heading immediately leaving this track point)
• CAPa (the average compass heading to the next waypoint)
• CAPc (machine calculated CAP heading to the next waypoint)

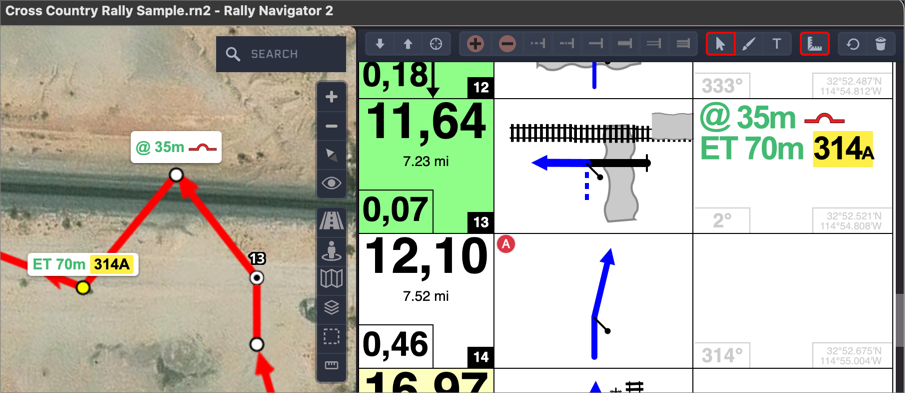

A track distance and an ET distance with its CAP heading

You can also drag the track point and watch the distance and CAP information update dynamically.

KMZ and GPX Export with Route Details

Export the route as a KMZ file with details included for:

• Special stage
• Transit stage
• Speed zones
• Neutralizations, waypoints, control icons, etc.

Useful for rally planning, event monitoring, safety, dispatch, media, staff and asset location.

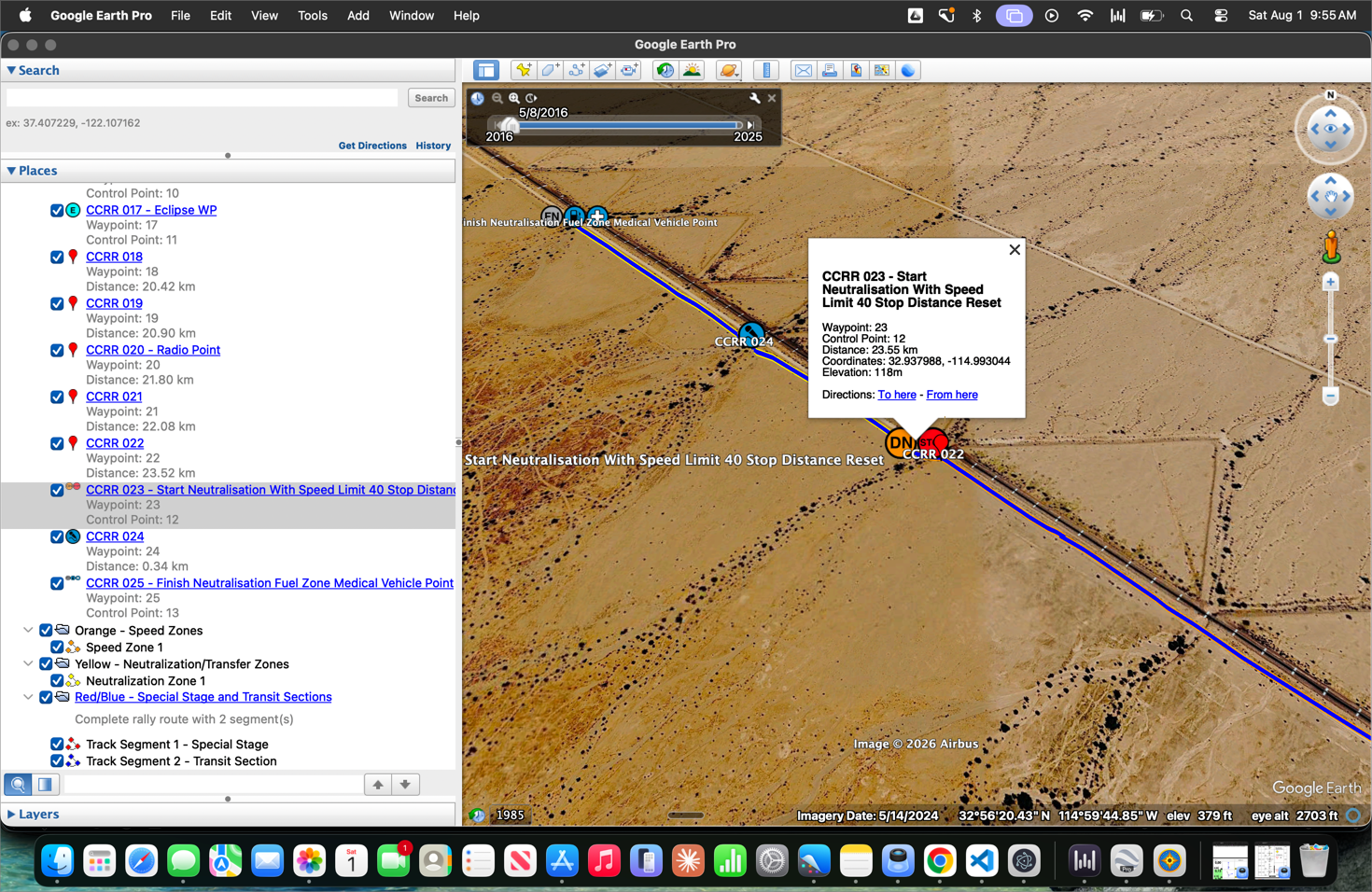

Users can quickly click and fly to any item on the list, with the included details visible.

Download the sample KMZ — Cross Country Rally

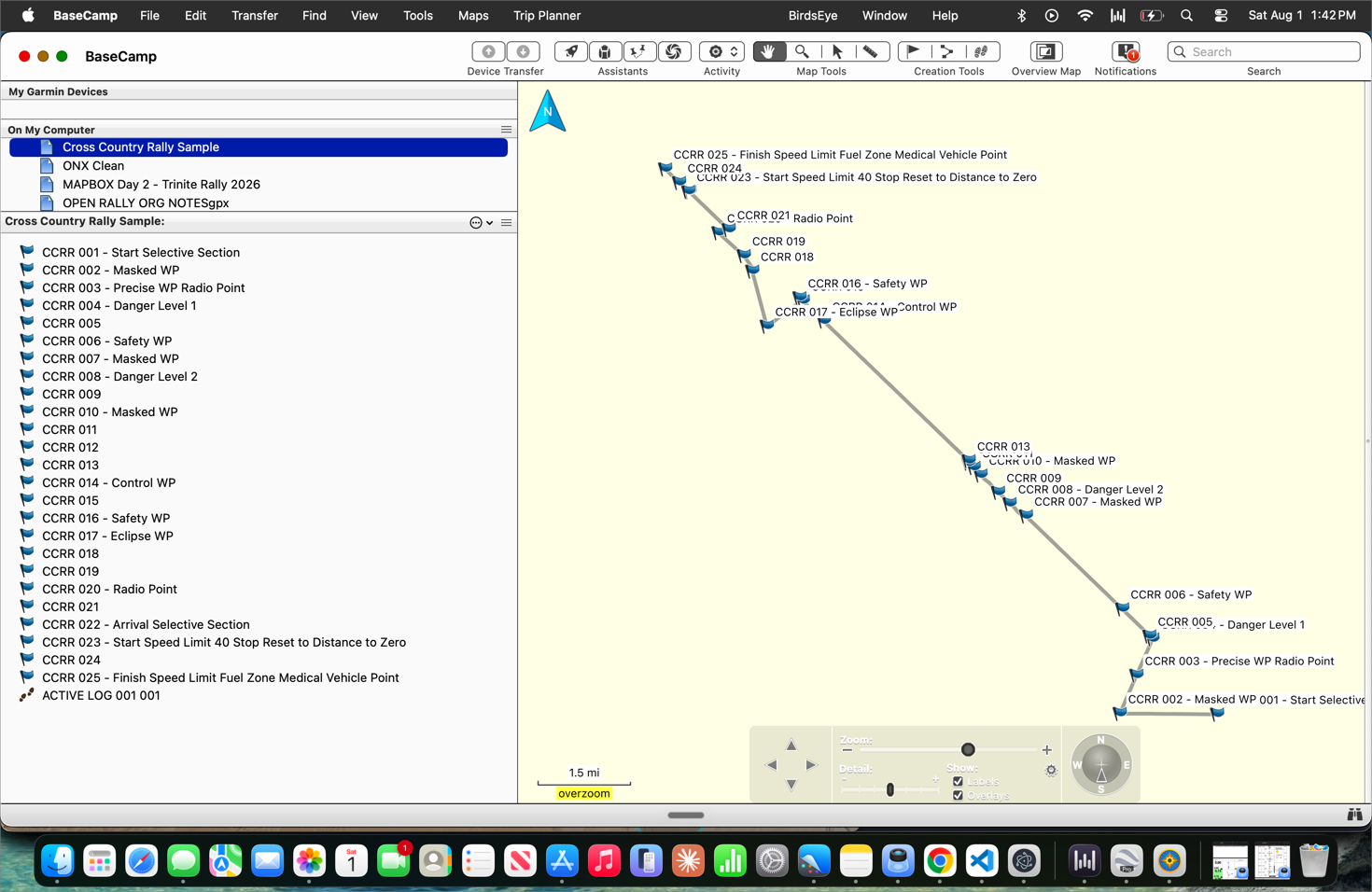

Download the sample GPX — Cross Country Rally route

Tulip Assist

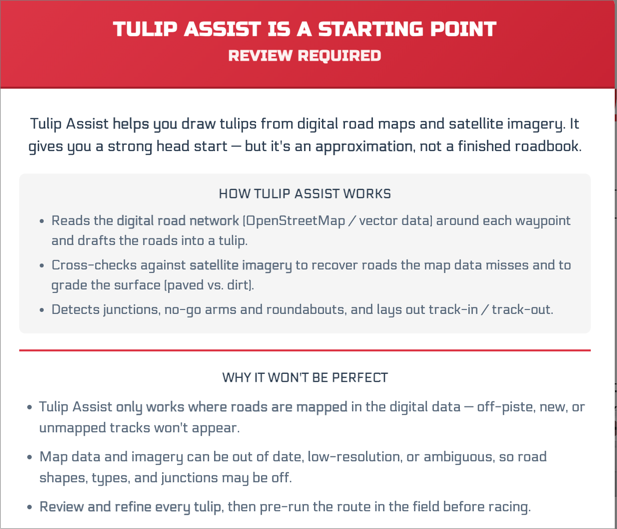

Tulip Assist Is a Starting Point — Review Required

Tulip Assist helps you draw tulips from digital road maps and satellite imagery.

There are three phases of Tulip Assist that display in the toolbar at the top of the roadbook panel: Preparing, Generating, Reviewing.

Use the Follow Roads feature to lay out your route. Some waypoints will be automatically added. You can manually create or hide additional waypoints along the way. Let Tulip Assist Prepare and Generate Tulips while you build your route and waypoints. Then go back to waypoint number one and review each waypoint, correcting the tulip and adding icons and text as needed. When you are done reviewing a tulip, clicking the red A button marks it approved, turning it to a green check and advancing to the next waypoint. You can print a roadbook anytime, even if all the waypoints have not been reviewed and approved.

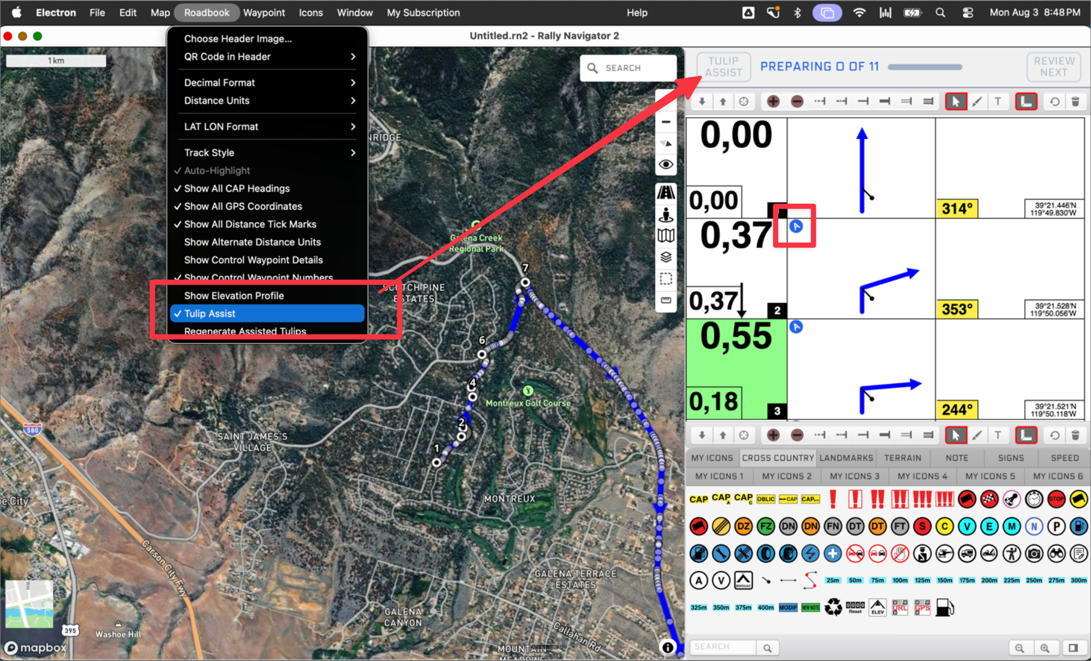

Turn Tulip Assist on from the Roadbook menu

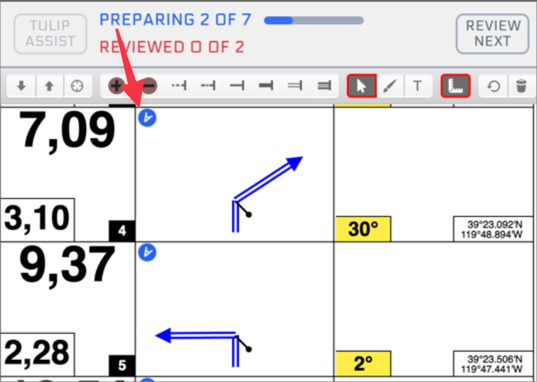

The Preparing phase, with its progress bar and review counter

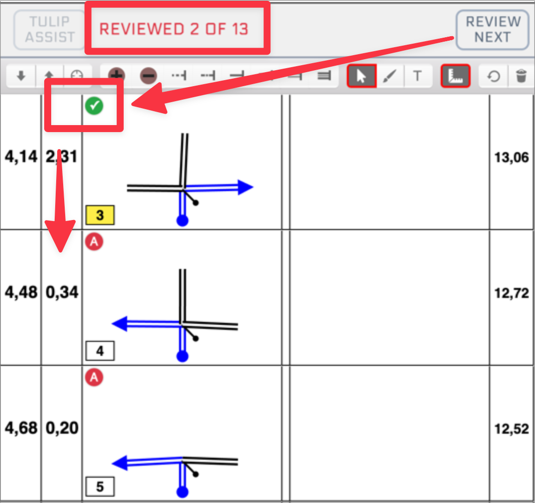

Reviewed tulips turn green; Review Next steps through the rest

Get Pro Rally

Pro Rally includes everything in the Premium tier plus all of the features above. Download Rally Navigator to try it.
