Create a Roadbook by Drawing on the Map

Double Click the Map & Create Your First Waypoint

• Enter Route Name, Description, Start and Finish Location in Header
• Click along route on Map to create Track Handles and red track.
• Double Click Track handle again to create all Waypoints along Route to Finish
• Carefully place 1st Track Handle after Waypoint to set direction of path leaving Waypoint, it’s used to automatically draw simple Tulip

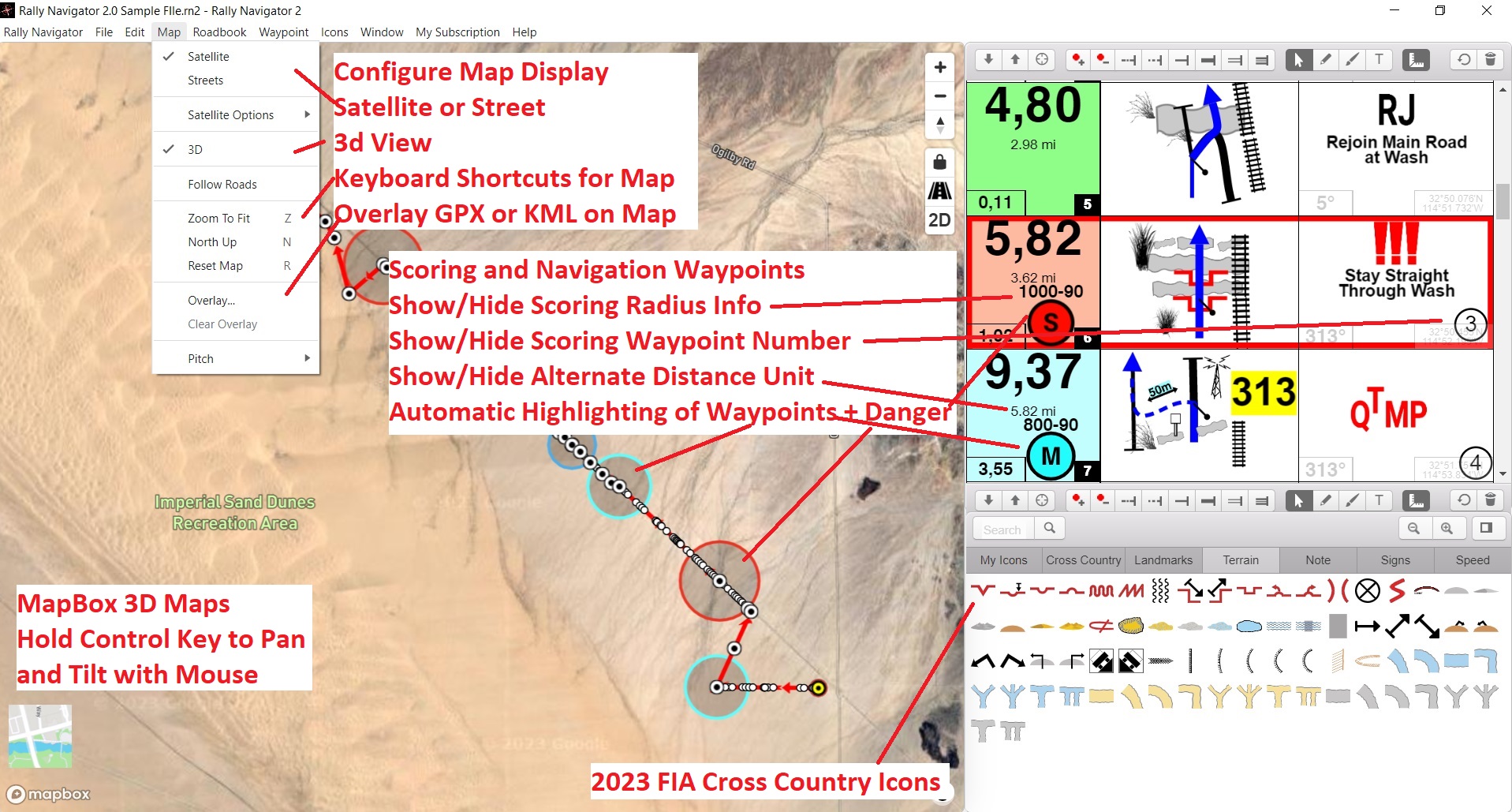

Mapbox – Snap to Roads – See the Power of Rally Navigator

• Snap to Roads. Rally Navigator will quickly trace roads shown on the Map
  • Control + Click Road on Map
• Snap to Roads with Text Navigation Added to Each Waypoint
  • PC: Control + Alt + Click Road on Map
  • Mac:Control + Command + Click Road on Map

Create a Roadbook from GPX or KML Tracks

GPS Tracks must be GPX Format. Track must be single continuous path.

Import GPX or KML Track to Get Started

• Select: File, Open, then choose a GPX or KML File to Import.
• You will see imported Tracks projected onto Main Map Screen.
• You can Insert Additional Tracks at the Start or End of the Track using File, Insert Track
• Enter Route Name, Description, Start and Finish Location in Header

Fine Tune Track and Create Waypoints Along the Route

• Mouse over the red Track and Click to create a track handle. Place handle carefully along track on Map to align track along your intended route. The Track is used to measure distance and must be accurate.
• Double Click a Track Handle to create a Waypoint at each intersection or POI along the route. Rally Navigator will automatically capture segment and total distance, generate tulip, GPS coordinates.
• Select the Road Type of the Main Tulip Arrow by clicking on Tulip road and then clicking on desired road type in the drawing tools bar. Changing a road type with change subsequent tulips also.

Add Waypoint Details: Roads, Icons Text

• Select a Waypoint by clicking in Roadbook.
• Drag desired “no go” road segments into Waypoint editor and shape road to create tulip, so curves in road and angles of roads at intersection exactly match.
• Drag and drop proper Navigation icons and signs into Tulip and Text Box. Rally Navigator utilizes full library of FIA Navigational Icons. Pro Users can add Custom Icons.
• Right Click in a box to Add Text Descriptions with turn info and navigational hints to each Waypoint.
• Right Click in Text box to Add a Background Image
• Continue along Route till you have fine tuned Track and created details for each Waypoint.
